Träsvarv D1000F
Heavy duty and very high quality cast iron machine
Infinitely variable speed adjustment via frequency convector
Divided into 5 main steps
Forward/reverse run as standard
Multi-bedded, precisely running main spindle
Standardized spindle (M33) at both sides of the tail stock
Very stable and absolutely smoothly running tool rest with quick lock function

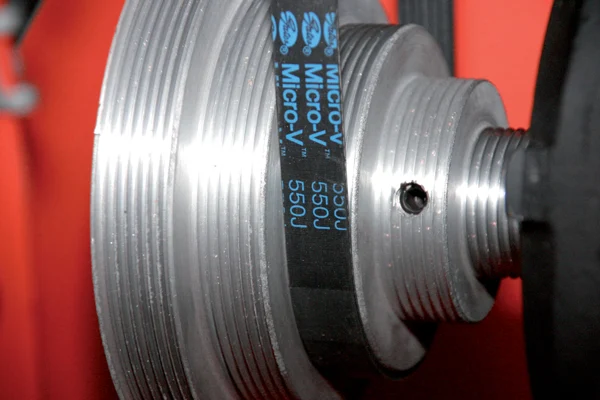

High quality- POLY-V drive belt assures quiet and smooth run combined with efffective power transmission
Spring loaded index pin with 24 divisions
Speed change and machine control via remote control
Control panel can be located at different positions
Spindle bore 14,5mm
Machine size (LxWxH) 1450x580x1240mm
included in delivery: stand, long tool rest 300mm, short tool rest 150mm, face plate 82mm, life center, 4-grab chuck with exchange able tip, retaining stud, 2 pcs open end wrenches, frequency convertor
Specifications: Träsvarv D1000F
Distance between centers 1000mm
Center height above machine bed 260mm
Spindle speeds (variable) 50-3890 U/min/rpm
Head stock, norm spindle M33 DIN800
- tail stock
- morse taper MK2/MT2
- tail spindle travel 90mm
Motorleistung S1 (100%) / S6 1,5kW / 2,1kW
Spindle collect MK2/MT2
Spindle collect (left) M33
Tailstock spindle travel 110mm
Distance floor-bed 880mm
Machine bed height 910mm
Voltage 400V
Net weight 310kg
Gross weight 330kg
